input 332V-498V Output 415V
All our products we got CE &RoHS & ISO 9001&SGS
Our voltage regulators with 2 years warranty,during our warranty we bear all(include all replace parts and freight cost to your address).
we don't show that how good after-sales service we offer, we just only want to tell our customers how good quality we produce.2 year warranty easy,but bear all,Can you?
Welcome to inquiry us of our product all materials parts' brand.
Features of Servo control Voltage Stabilizer(why choose us)
1. High quality Isolation transformer,insulation level is H
2. Input switch use N0.1 China brand -Chint brand,or Schneider (option)
3. Efficiency up to 99%
4. Independent or Dependent Three Phase Regulation subject to the order
5.Over load capacity is 200%-5s,150%-1min
6.Low loss
7. Rich protection functions
8. Manual bypass(use red copper materials)
9. With Surge protection, with over temperature protection,with time delay protection.
10. Remote control with RS232 or RS485 ( optional )
11. Indoor use IP23(Nema 2),Out door use IP54(Nema 3 R)or 65(option)
12.High customization ability
Specification:
| Input | ||||
| Input voltage | 220V/380V,230V/400V,240V/415V etc or other voltage accepted | |||
| Phase | 3P+N+G or 3P+G option | |||
| Input range | ±20%(±15%~±60%) can be customized | |||
| Input frequency | 47Hz-63Hz | |||
| Input switch | Chint Brand switch(ABB,Schneider option) | |||
| Output | ||||
| Output voltage | 220V/380V,230V/400V,240V/415V etc or other voltage accepted | |||
| Phase | 3P+N+G or 3P+G option | |||
| Output accuracy | ±1%-±5%(factory setting 2%) | |||
| Output Frequency | 50Hz/60Hz (LCD display will be identify automatc 50 or 60Hz) | |||
| Power factor | 0.8 or 0.9,1 option( general AVR 0.8) | |||
| Waveform distortion | No distortion(same as input waveform) | |||
| Efficiency | ≥98%(on full load) | |||
| Overload capacity | 150% for 5 minutes,200% for 1 minute | |||
| Response time | <10ms | |||
| THD | <3%(linear load) | |||
| General | ||||
| Compensation transformer | Insulation H level,200 degree | |||
| Control method | Compensation regulation or Independent regulation for each phase (option) | |||
| Working principle | Full automatic ,servo motor/SCR/IGBT | |||
| IP level | IP21(indoor), IP54 or IP65(Outdoor) | |||
| Cooling | Air cooling/ Fan system | |||
| Environment | ||||
| Woking temperature | -20° to +50°(if high teperature in your city,please inform us) | |||
| Ralative humidity | <90% | |||
| Noise | 45db@70% load,55db@100%load (within one meter) | |||
| Altitude | <1500m | |||
| LCD display | ||||
| Display | 5.0 LCD digital dispaly | |||
| LCD display show | Input Phase to netural | |||
| Input phase to phase | ||||
| Output phase to neutral | ||||
| Output phase to phase | ||||
| Load Current in each phases(press button to switch ) | ||||
| Frequency (50 or 60hz autoamtic indentify show) | ||||
| Working temperature | ||||
| Function | ||||
| Normal functions | Malti-protect fuction,over voltage/under voltage protection,over current protection,over load protection,saty start protection,manual bypass protection,short circuit protection,lack of phase protection,wrong sequence protection,indicate alarm,over temperature protection. | |||

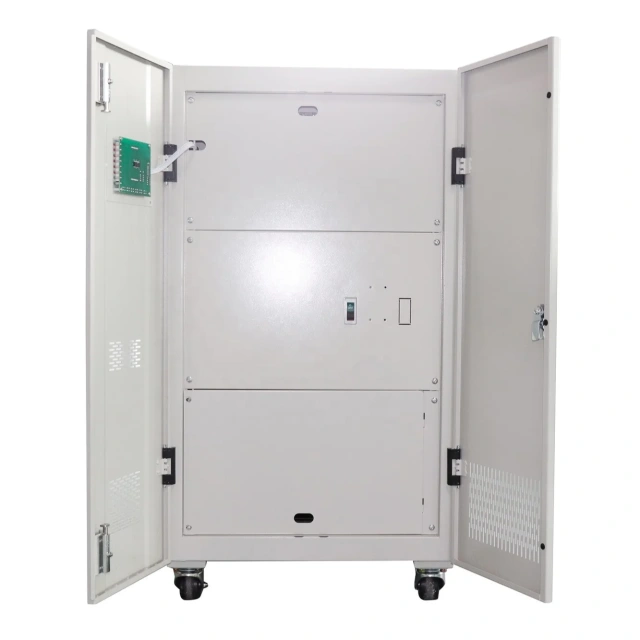

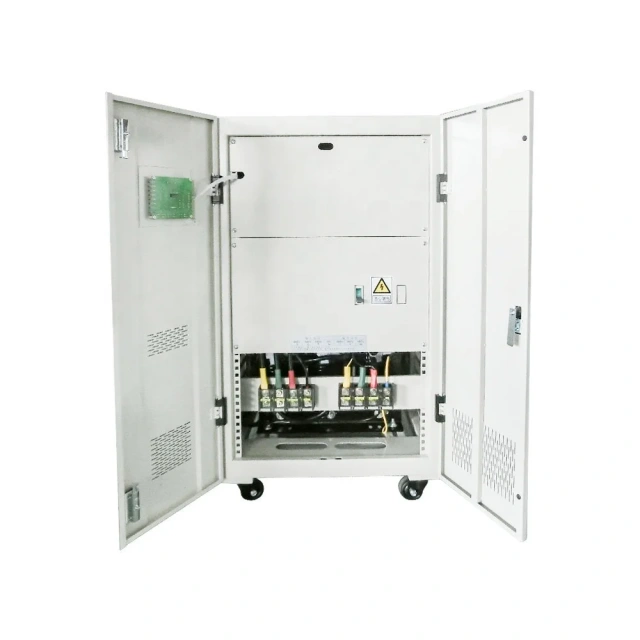

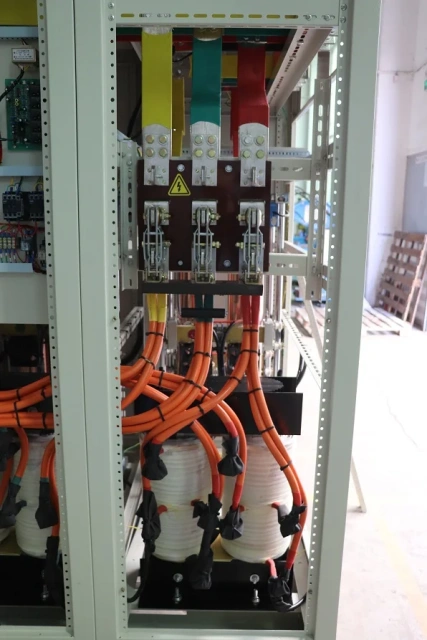

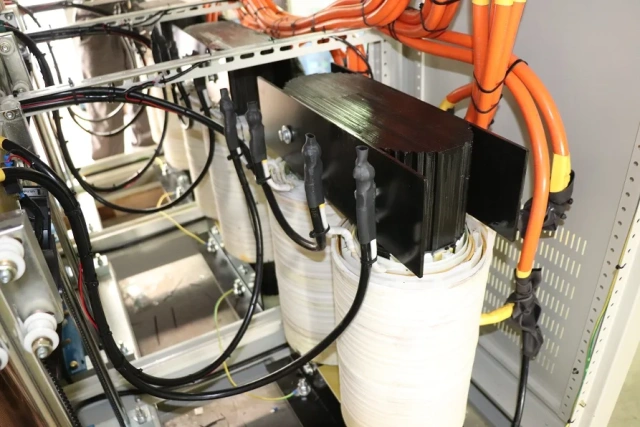

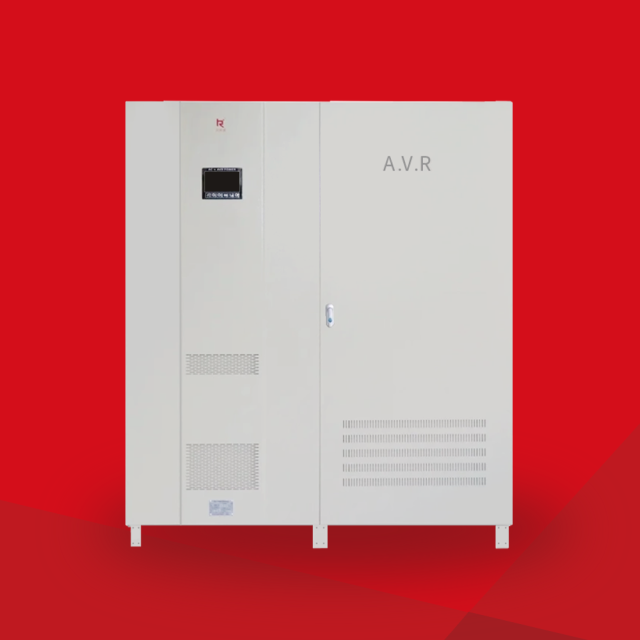

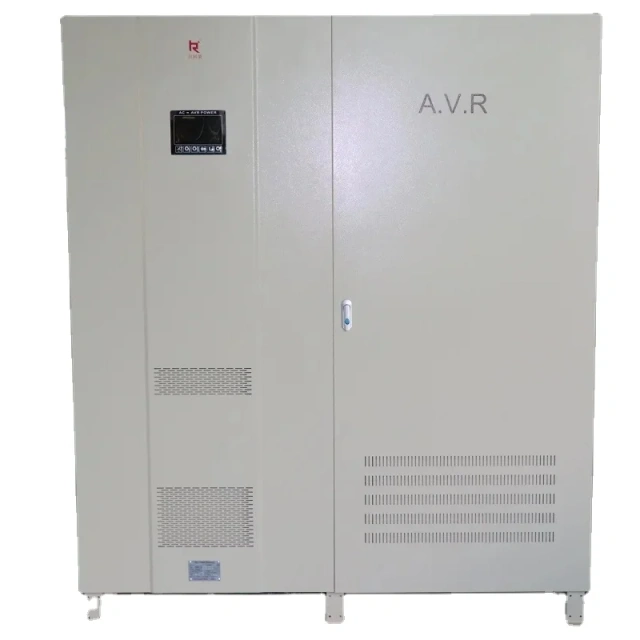

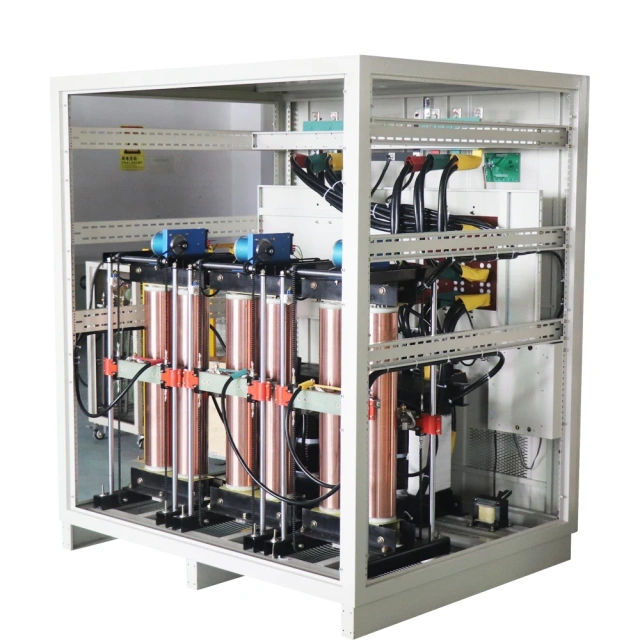

10kva voltage regulator pictures for reference:
Contact Info:
If you have any questions and helps,please contact us freely,we will be 24 hours on your side.
Sales:Louis
Phone number:+86 13612938204
Wsp ID:+86 13612938204
Wcht ID:13612938204
| Pregunta 1.: | ¿Es usted un fabricante? |
| Respuesta:Absolutamente.Nuestra fábrica es un verdadero fabricante de fuentes de alimentación industriales.
¡Bienvenido a verificar nuestra fábrica en cualquier momento! |
|
| Pregunta 2.: | ¿Cómo es la calidad de su transformador? |
| Respuesta: Nuestra fábrica utiliza marcas de renombre internacional de acero al silicio no orientado o acero al silicio orientado para lograr una baja pérdida de hierro y una alta inducción magnética. | |
| Pregunta 3.: | ¿Cual es el tiempo de entrega? |
|
Respuesta:El tiempo de entrega estándar es de 7-10 días hábiles. Son más de 15 días hábiles. |
|
| Pregunta 4.: | ¿Podemos personalizar el logo? |
| Respuesta:por supuesto.Nuestra propia fábrica admite pedidos ODM/OEM. | |
| Pregunta 5.: | ¿Cuál es la cantidad mínima de pedido? |
| Respuesta:La cantidad mínima de pedido para productos estándar es 1 unidad. | |
| Pregunta 6.: | ¿Por qué elegir los productos SINCRON? |
|
Repetición: A. Material: SINCRON utiliza materias primas de marcas internacionales de primera línea y garantiza que son 100% nuevas, lo que le permite comprender claramente dónde se encuentra su consumo de costos. |
|
