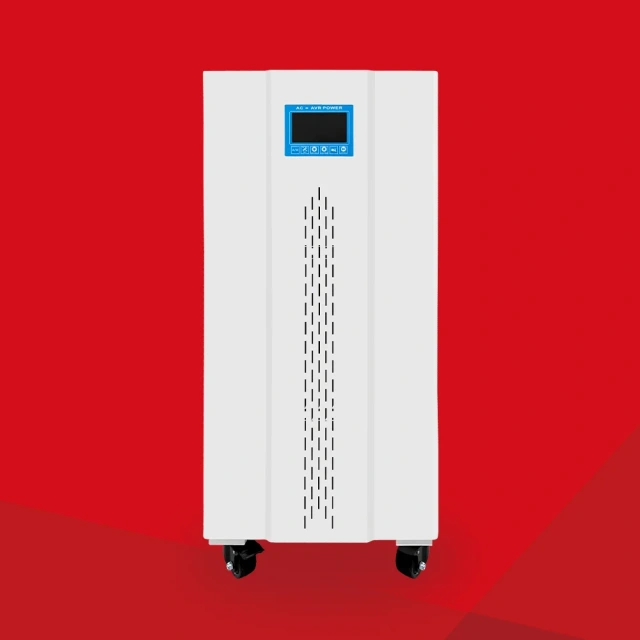

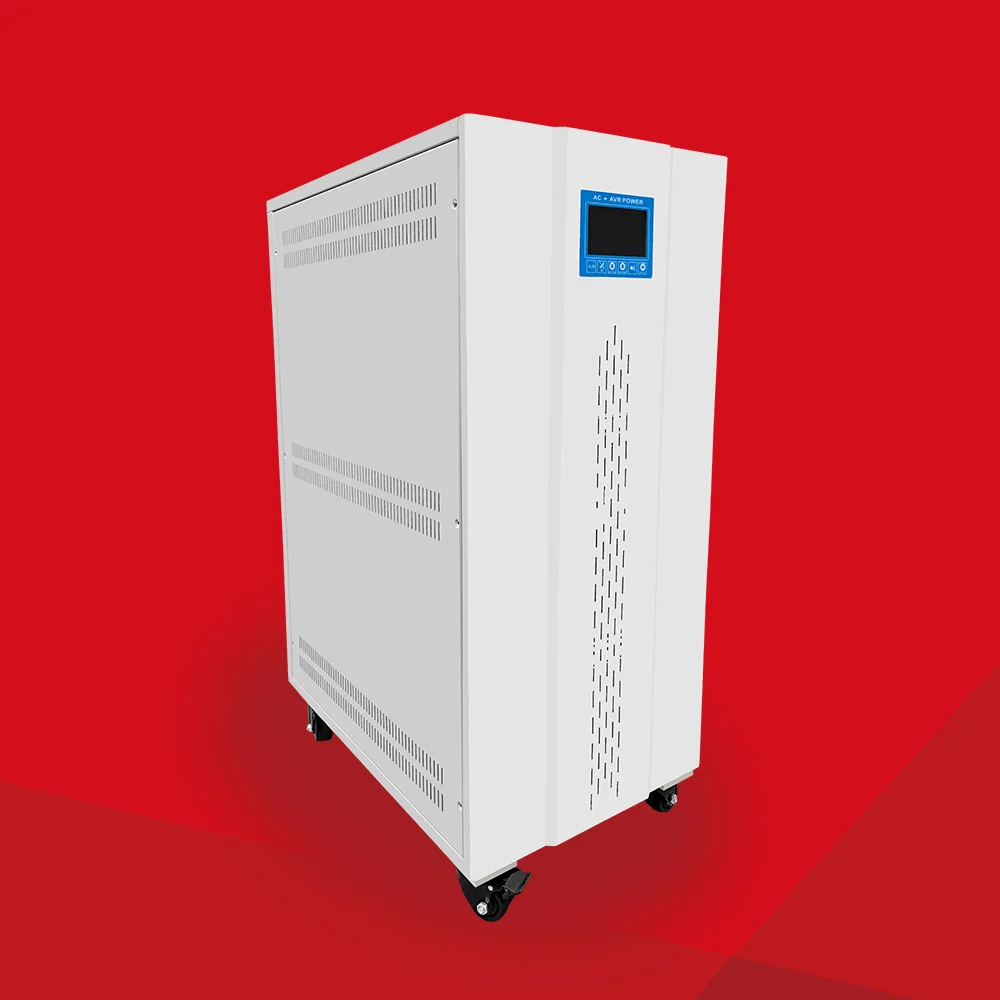

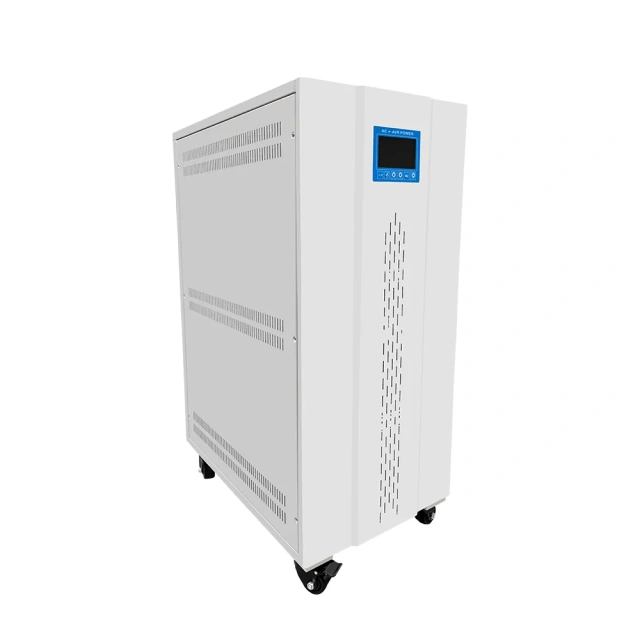

| Input | ||||
| Input voltage | 220V/380V,230V/400V,240V/415V etc or other voltage accepted | |||
| Phase | 3P+N+G or 3P+G option | |||
| Input range | ±20%(±15%~±60%) can be customized | |||
| Input frequency | 47Hz-63Hz | |||
| Input switch | Chint Brand switch(ABB,Schneider option) | |||
| Output | ||||
| Output voltage | 220V/380V,230V/400V,240V/415V etc or other voltage accepted | |||
| Phase | 3P+N+G or 3P+G option | |||
| Output accuracy | ±1%-±5%(factory setting 2%) | |||
| Output Frequency | 50Hz/60Hz (LCD display will be identify automatc 50 or 60Hz) | |||
| Power factor | 0.8 or 0.9,1 option( general AVR 0.8) | |||
| Waveform distortion | No distortion(same as input waveform) | |||
| Efficiency | ≥98%(on full load) | |||
| Overload capacity | 150% for 5 minutes,200% for 1 minute | |||
| Response time | <10ms | |||
| THD | <3%(linear load) | |||
| General | ||||
| Compensation transformer | Insulation H level,200 degree | |||
| Control method | Compensation regulation or Independent regulation for each phase (option) | |||
| Working principle | Full automatic ,servo motor/SCR/IGBT | |||
| IP level | IP21(indoor), IP54 or IP65(Outdoor) | |||

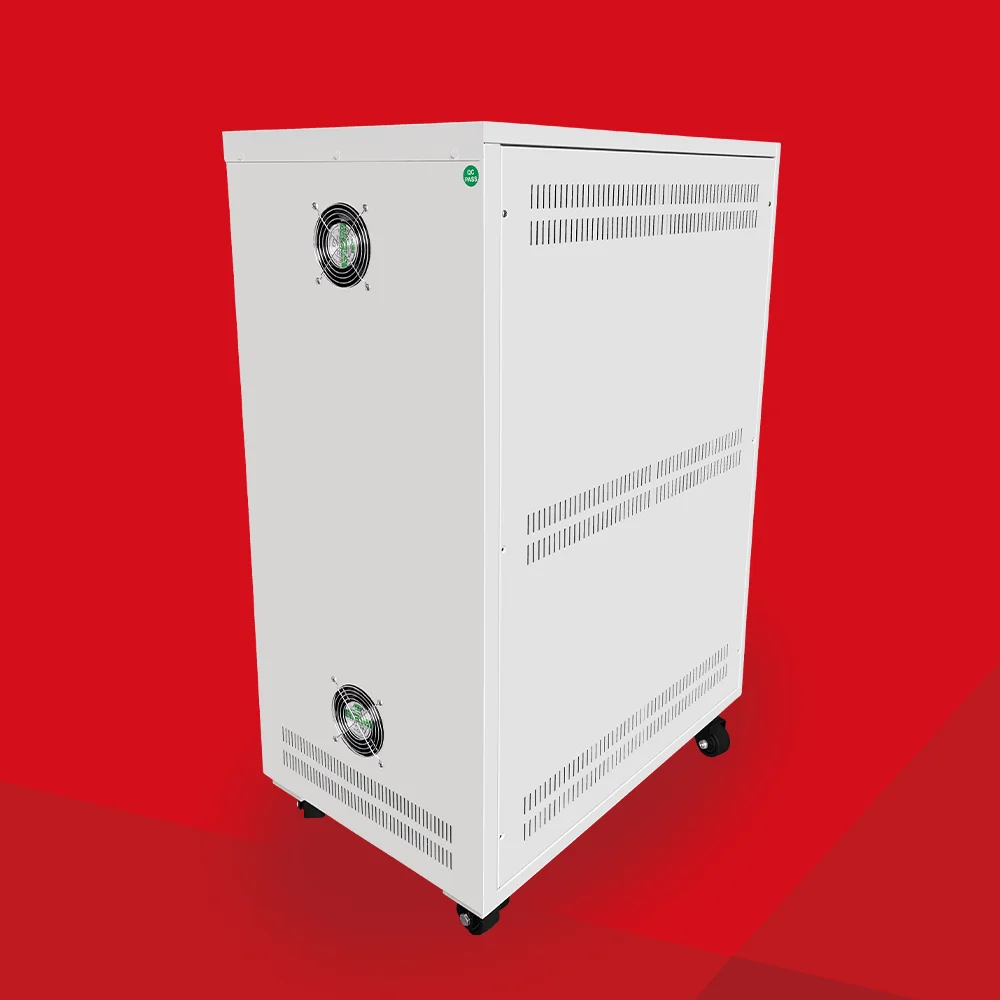

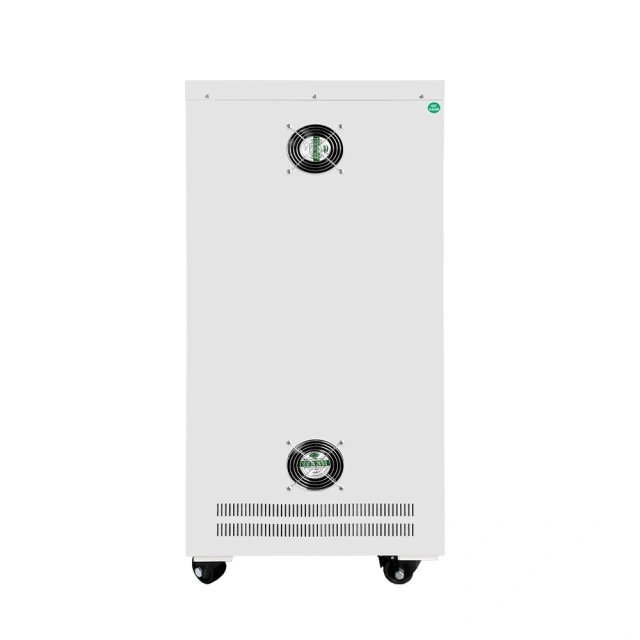

| Cooling | Air cooling/ Fan system | |||
| Environment | ||||
| Woking temperature | -20° to +50°(if high teperature in your city,please inform us) | |||
| Ralative humidity | <90% | |||
| Noise | 45db@70% load,55db@100%load (within one meter) | |||
| Altitude | <1500m | |||
| LCD display | ||||
| Display | 5.0 LCD digital dispaly | |||
| LCD display show | Input Phase to netural | |||
| Input phase to phase | ||||
| Output phase to neutral | ||||
| Output phase to phase | ||||
| Load Current in each phases(press button to switch ) | ||||
| Frequency (50 or 60hz autoamtic indentify show) | ||||
| Working temperature | ||||
| Function | ||||
| Normal functions | Malti-protect fuction,over voltage/under voltage protection,over current protection,over load protection,saty start protection,manual bypass protection,short circuit protection,lack of phase protection,wrong sequence protection,indicate alarm,over temperature protection. | |||
| Question 1.: | Are you a manufacturer? |
| Reply: Absolutely.Our factory is a true industrial power supply manufacturer. Welcome to verify our factory any time! | |
| Question 2.: | How is the quality of your transformer? |
| Reply: Our factory uses internationally renowned brands of non oriented silicon steel or oriented silicon steel to achieve low iron loss and high magnetic induction. | |
| Question 3.: | What is the delivery time? |
Reply:The standard delivery time is 7-10 working days. it is more than 15 working days. | |
| Question 4.: | Can we customize the logo? |
| Reply:certainly.Our own factory supports ODM/OEM orders. | |
| Question 5.: | What is the minimum order quantity? |
| Reply:Minimum order quantity for standard products is 1 unit. | |
| Question 6.: | Why choose SINCRON products? |
Replay: A. Material: SINCRON uses international first-line brand raw materials and guarantees 100% brand new, allowing you to clearly understand where your cost consumption is. | |
| Pregunta 1.: | ¿Es usted un fabricante? |
| Respuesta:Absolutamente.Nuestra fábrica es un verdadero fabricante de fuentes de alimentación industriales.
¡Bienvenido a verificar nuestra fábrica en cualquier momento! |
|
| Pregunta 2.: | ¿Cómo es la calidad de su transformador? |
| Respuesta: Nuestra fábrica utiliza marcas de renombre internacional de acero al silicio no orientado o acero al silicio orientado para lograr una baja pérdida de hierro y una alta inducción magnética. | |
| Pregunta 3.: | ¿Cual es el tiempo de entrega? |
|
Respuesta:El tiempo de entrega estándar es de 7-10 días hábiles. Son más de 15 días hábiles. |
|
| Pregunta 4.: | ¿Podemos personalizar el logo? |
| Respuesta:por supuesto.Nuestra propia fábrica admite pedidos ODM/OEM. | |
| Pregunta 5.: | ¿Cuál es la cantidad mínima de pedido? |
| Respuesta:La cantidad mínima de pedido para productos estándar es 1 unidad. | |
| Pregunta 6.: | ¿Por qué elegir los productos SINCRON? |
|
Repetición: A. Material: SINCRON utiliza materias primas de marcas internacionales de primera línea y garantiza que son 100% nuevas, lo que le permite comprender claramente dónde se encuentra su consumo de costos. |
|
